Embedding a web view into an Excel add-in

Excel supports COM add-ins that extend its interface and interact with the workbook programmatically. An add-in can add ribbon buttons, handle spreadsheet events, and show custom UI in task panes — side panels that sit alongside the data.

With DotNetBrowser, a task pane can host a full Chromium browser, and the web page inside it can read and write spreadsheet data directly.

This article walks through building a COM add-in that does exactly that. The complete source is available in the GitHub repository.

If you’re exploring related Office integration scenarios, two tutorials may also be useful. The VSTO tutorial shows how to embed DotNetBrowser into a Microsoft Outlook add-in, and the COM/ActiveX tutorial explains the broader wrapping approach for COM clients and ActiveX containers.

Architecture overview

The add-in we’re going to build is a COM class library that Excel discovers through the Windows registry and loads at startup. It extends the ribbon with a button; clicking it opens a task pane and starts a DotNetBrowser browser view inside it.

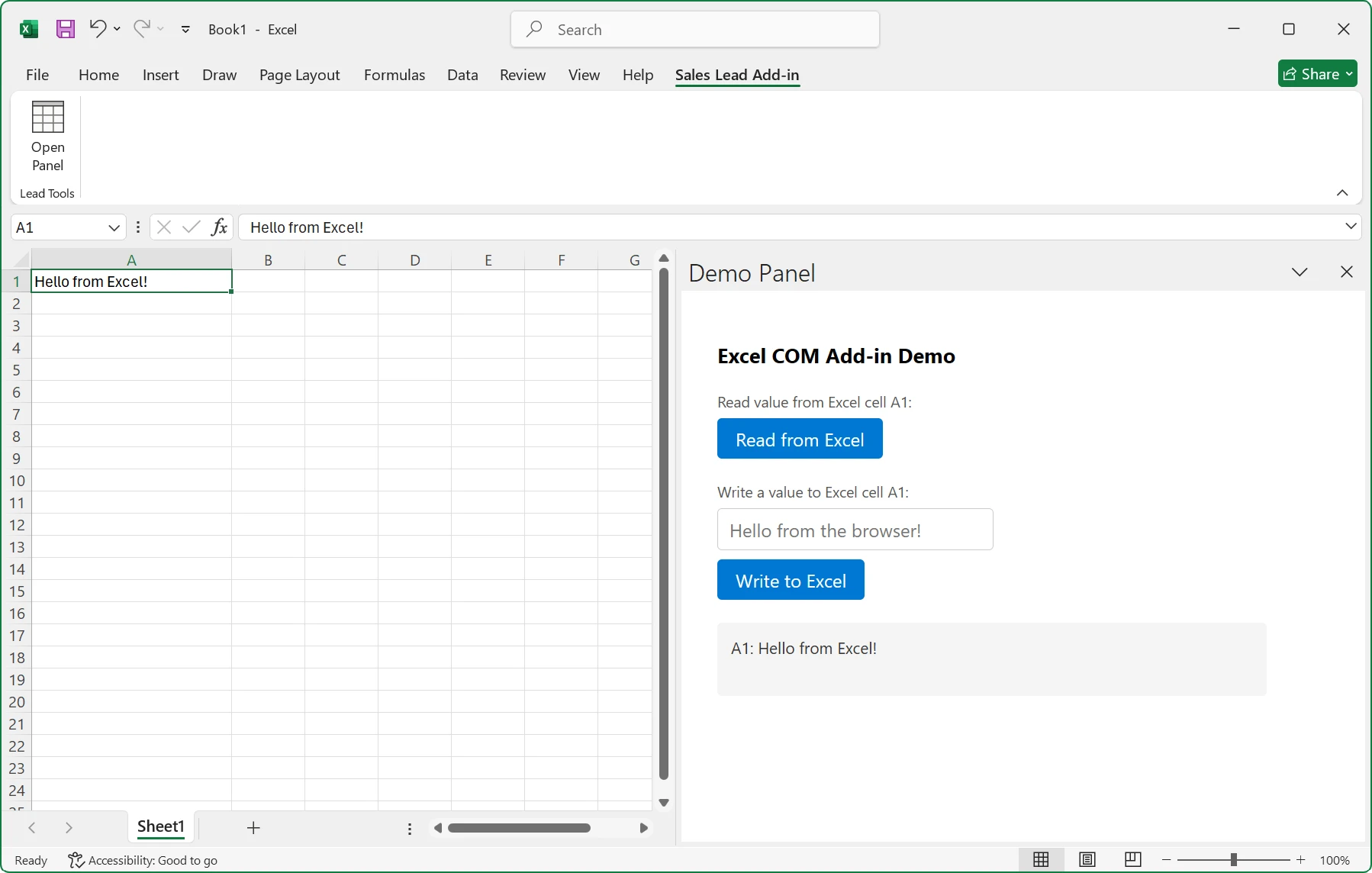

A custom pane in Excel with DotNetBrowser

A custom pane in Excel with DotNetBrowser.

DotNetBrowser provides a visual BrowserView control that can be embedded in a WinForms application. We wrap it in a COM-visible WinForms container and show that container in the task pane. The browser loads a local web page bundled with the add-in, and injects a special C# object into the page’s JavaScript environment. We will use this object to let the page and the spreadsheet directly exchange information.

Excel
 ├── COM Add-in
 │    ├── Custom ribbon tab and button
 │    └── Custom pane
 │         └── WinForms COM-visible control
 │              ├── DotNetBrowser
 │                   └── Local web page

1. Project setup

Create the class library

In Visual Studio, create a new Windows Forms Class Library targeting .NET Framework 4.7.2 or later. .NET Framework is the conventional target for Office COM add-ins. Name the project ExcelComAddin. The output type must be Library.

Install DotNetBrowser

Install the DotNetBrowser.WinForms NuGet package. It pulls in the core DotNetBrowser package and the Chromium binaries for all supported Windows architectures:

dotnet add package DotNetBrowser.WinForms

Sign the assembly

Signing the assembly with a strong name ensures that regasm.exe can reliably register it and that Excel can load it consistently. In Visual Studio, go to Project Properties → Signing, check Sign the assembly, and create a new key file. The .csproj will reflect this:

<PropertyGroup>
  <SignAssembly>true</SignAssembly>
  <AssemblyOriginatorKeyFile>test.snk</AssemblyOriginatorKeyFile>
</PropertyGroup>

Enable COM registration on build

In Project Properties → Build, enable Register for COM Interop for the Debug configuration. MSBuild will run regasm.exe after each build and unregister on clean.

In the .csproj:

<PropertyGroup
    Condition="'$(Configuration)|$(Platform)'
               == 'Debug|AnyCPU'">
  <RegisterForComInterop>true</RegisterForComInterop>
</PropertyGroup>

Assembly registration writes to the Windows registry and requires administrator privileges. Run Visual Studio as administrator, or the registration step will fail with an access-denied error that can be easy to miss in the build output.

2. The add-in entry point

The Connect class is the COM entry point Excel loads at startup. We mark it with the attributes that identify it to the runtime:

[ComVisible(true)]
[Guid("...")]
[ProgId("ExcelComAddin.Connect")]
[ClassInterface(ClassInterfaceType.AutoDispatch)]
public class Connect : IDTExtensibility2,
                       IRibbonExtensibility,
                       ICustomTaskPaneConsumer

The ClassInterfaceType.AutoDispatch attribute tells COM to expose all public members through IDispatch; no separate interface declaration required.

The Connect class implements three interfaces: IDTExtensibility2 (add-in lifecycle), IRibbonExtensibility (ribbon button, covered in Section 4, and ICustomTaskPaneConsumer (the interface through which Excel delivers the factory object used to create task panes).

The IDTExtensibility2 interface manages the add-in lifecycle. When the add-in connects, we capture Excel’s Application object: we need it later to access the active worksheet:

public class Connect : IDTExtensibility2, ...
{
    private Application _excelApplication;

    public void OnConnection(
        object application,
        ext_ConnectMode connectMode,
        object addInInstance,
        ref Array custom)
    {
        _excelApplication = application as Application;
    }

    ...
}

The ICustomTaskPaneConsumer interface delivers the factory Excel uses to create our task panes. It has one method, CTPFactoryAvailable, that Excel calls during add-in startup to hand us the factory instance. We store it and use it later to create the pane:

public void CTPFactoryAvailable(ICTPFactory CTPFactoryInst)
{
    _ctpFactory = CTPFactoryInst;
}

When the user opens the panel, we use this factory to create the task pane:

public class Connect : IDTExtensibility2, ...
{
    public Connect()
    {
        _taskPaneManager = new TaskPaneManager(..., CreateTaskPane, ...);
    }

    private CustomTaskPane CreateTaskPane()
    {
        var ctp = _ctpFactory.CreateCTP(
            "ExcelComAddin.BrowserHostControl",
            "Demo Panel",
            Type.Missing);
        // ...
    }
}

3. Add-in registration

A COM-visible class alone is not enough for Excel to discover the add-in. You also need a registry key under:

HKCU\Software\Microsoft\Office\Excel\Addins\<ProgId>

The key must contain these values:

Value	Content
`FriendlyName`	Display name in the add-in manager
`Description`	Short description
`LoadBehavior`	`3` to load at startup and connect immediately
`ProgId`	`ExcelComAddin.Connect`
`CommandLineSafe`	`0`, not safe to load in non-interactive mode

To write and remove this key automatically as part of regasm.exe registration, we need to decorate these two methods with [ComRegisterFunction] and [ComUnregisterFunction]:

public class Connect : IDTExtensibility2, ...
{
    [ComRegisterFunction]
    public static void Register(Type t) =>
        ComRegistration.RegisterExcelAddInKeys();

    [ComUnregisterFunction]
    public static void Unregister(Type t) =>
        ComRegistration.UnregisterExcelAddInKeys();
}

4. The ribbon extension

In the Connect class, we implement IRibbonExtensibility.GetCustomUI that returns the XML for the ribbon extension. The XML adds a tab with a button that will open the task pane:

<customUI xmlns='http://schemas.microsoft.com/office/2009/07/customui'>
  <ribbon><tabs>
    <tab id='excelComAddinTab' label='Sales Lead Add-in'
         getVisible='GetTabVisible'>
      <group id='excelComAddinGroup' label='Lead Tools'>
        <button id='excelComAddinOpenPanelButton'
                size='large' label='Open Panel'
                imageMso='TableInsert'
                onAction='OnOpenPanel'/>
      </group>
    </tab>
  </tabs></ribbon>
</customUI>

A custom tab in a ribbon in Excel

A custom tab in a ribbon in Excel.

5. Initializing DotNetBrowser

The DotNetBrowser’s Engine is the main entity of the library. It manages the Chromium main process lifecycle. We create the engine when the task pane first opens, and configure it with a custom app:// URL scheme:

public class Connect : IDTExtensibility2, ...
{
    public Connect()
    {
        _taskPaneManager = new TaskPaneManager(
            ..., new EngineManager());
    }
}

public class EngineManager
{
    public IEngine Start()
    {
        var builder = new EngineOptions.Builder
        {
            RenderingMode = RenderingMode.HardwareAccelerated
        };
        builder.Schemes[Scheme.Create("app")] =
            new Handler<
                InterceptRequestParameters,
                InterceptRequestResponse>(HandleAppSchemeRequest);
        return EngineFactory.Create(builder.Build());
    }
}

Loading a local page

Our web page is bundled as an embedded resource in the assembly. In the .csproj:

<ItemGroup>
  <EmbeddedResource Include="..\Web\index.html">
    <Link>Web\index.html</Link>
  </EmbeddedResource>
</ItemGroup>

The scheme handler reads it from the manifest and returns it as a response:

private const string IndexHtmlResource = "ExcelComAddin.Web.index.html";

private static InterceptRequestResponse HandleAppSchemeRequest(
    InterceptRequestParameters parameters)
{
    using (var stream = Assembly.GetExecutingAssembly()
               .GetManifestResourceStream(IndexHtmlResource))
    using (var ms = new MemoryStream())
    {
        stream.CopyTo(ms);
        var options = new UrlRequestJobOptions
        {
            HttpStatusCode = HttpStatusCode.OK,
            Headers = { new HttpHeader("Content-Type", "text/html") }
        };
        var job = parameters.Network.CreateUrlRequestJob(
            parameters.UrlRequest, options);
        job.Write(ms.ToArray());
        job.Complete();
        return InterceptRequestResponse.Intercept(job);
    }
}

This handler serves a single HTML file. To serve a more advanced set of files, like JavaScript, CSS, images, with content types inferred from file extensions, you can extend this pattern. See this implementation for more details.

If your use case requires a remotely hosted page instead, skip this and load a regular URL.

6. Showing the browser in the task pane

We create BrowserHostControl as a UserControl with COM visibility so Excel’s task pane API can instantiate it:

[ComVisible(true)]
[Guid("...")]
[ProgId("ExcelComAddin.BrowserHostControl")]
public class BrowserHostControl : UserControl

Then we initialize the browser, add it to BrowserHostControl, and navigate to the page:

public class BrowserHostControl : UserControl
{
    private IBrowser _browser;

    public void InitializeBrowser(IEngine browserEngine)
    {
        _browser = browserEngine.CreateBrowser();

        var browserView = new BrowserView();
        browserView.InitializeFrom(_browser);
        browserView.Dock = DockStyle.Fill;
        Controls.Add(browserView);

        _browser.Navigation.LoadUrl(
            "app://excelcomaddin/index.html");
    }
}

Spreadsheet–browser intercom

We also configure the browser to inject a C# object into the JavaScript context on every page load. We will use this object to exchange information between the page and the spreadsheet:

public class BrowserHostControl : UserControl
{
    private Func<string> _read;
    private Action<string> _write;

    public string readFromExcel() => _read();
    public void writeToExcel(string value) => _write(value);

    public void SetJavaScriptCallbacks(Func<string> read, Action<string> write)
    {
        _read = read;
        _write = write;
    }

    public void InitializeBrowser(IEngine browserEngine)
    {
        // ...
        _browser.InjectJsHandler =
            new Handler<InjectJsParameters>(args =>
            {
                IJsObject window = args.Frame
                    .ExecuteJavaScript<IJsObject>("window")
                    .Result;
                window.Properties["excelBridge"] = this;
            });
        // ...
    }
}

7. The task pane

TaskPane is a thin wrapper we define around CustomTaskPane. It exposes the HostControl property (a BrowserHostControl) and a Visible setter, keeping the TaskPaneManager code clean of COM API details.

When the user clicks the ribbon button, we create the task pane, supply the callbacks for reading and writing spreadsheet data, and start the browser:

public class TaskPaneManager
{
    public TaskPaneManager(
        Func<Application> getApplication,
        Func<TaskPane> paneFactory,
        EngineManager engineManager)
    { ... }

    public void Show()
    {
        _pane = _paneFactory();
        _pane.HostControl.SetJavaScriptCallbacks(
            ReadCellA1, WriteCellA1);
        _pane.HostControl.InitializeBrowser(
            _engineManager.Start());
        _pane.Visible = true;
    }

    private string ReadCellA1()
    {
        var sheet = _getApplication()?.ActiveSheet as Worksheet;
        var cell = sheet?.Cells[1, 1] as Range;
        return cell?.Value?.ToString() ?? "(empty)";
    }

    private void WriteCellA1(string value)
    {
        var sheet = _getApplication()?.ActiveSheet as Worksheet;
        if (sheet != null)
            sheet.Cells[1, 1] = value;
    }
}

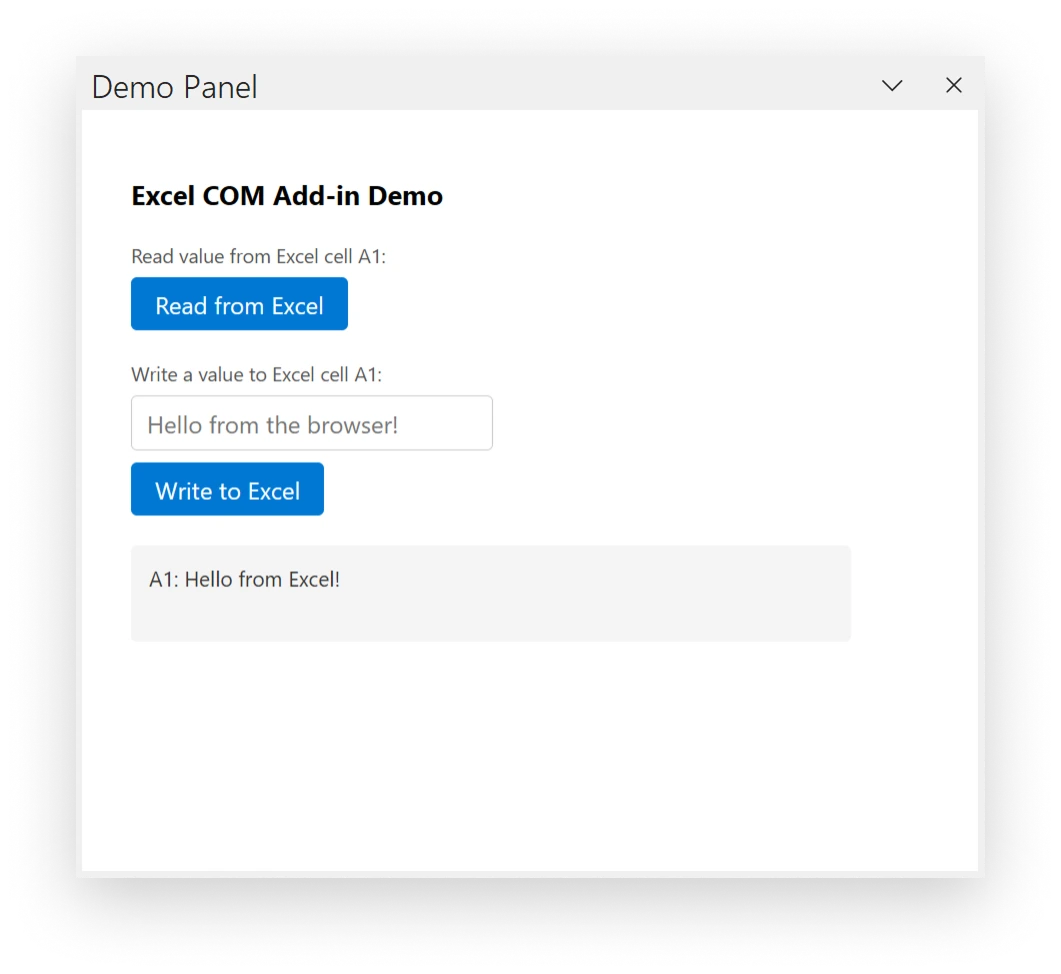

A custom task pane with DotNetBrowser inside

A custom task pane with DotNetBrowser inside.

8. The web UI

With the C# side in place, the final piece is the web page bundled with the add-in. The page’s body:

<div>
  <label>Read value from Excel cell A1:</label>
  <button id="btn-read">Read from Excel</button>
</div>

<div>
  <label>Write a value to Excel cell A1:</label>
  <input id="txt-write" type="text" />
  <button id="btn-write">Write to Excel</button>
</div>

<div id="output">Press a button to interact with Excel.</div>

An inline <script> at the bottom retrieves window.excelBridge and wires the buttons:

(function () {
    var bridge = window.excelBridge;
    var output = document.getElementById('output');

    document.getElementById('btn-read')
        .addEventListener('click', function () {
            output.textContent = `A1: ${bridge.readFromExcel()}`;
        });

    document.getElementById('btn-write')
        .addEventListener('click', function () {
            var value = document.getElementById('txt-write').value;
            bridge.writeToExcel(value);
            output.textContent = `Written "${value}" to A1.`;
        });
})();

Results

After building the project in Visual Studio running as administrator and opening Excel, the add-in loads automatically. A “Sales Lead Add-in” tab appears in the ribbon. Clicking “Open Panel” opens the task pane with the browser UI loaded.

DotNetBrowser embedded in Excel in action.

Clicking “Read from Excel” displays the current value of cell A1 in the output area below the buttons. Typing a value and clicking “Write to Excel” writes it directly to the cell.

Conclusion

The result is a full Chromium browser running inside Excel, with a live connection to the active worksheet. The web page can be as simple or as rich as needed — a data visualization, a form with validation, a React app — while still having direct access to spreadsheet data through C#.

The complete source is available in the example repository.
